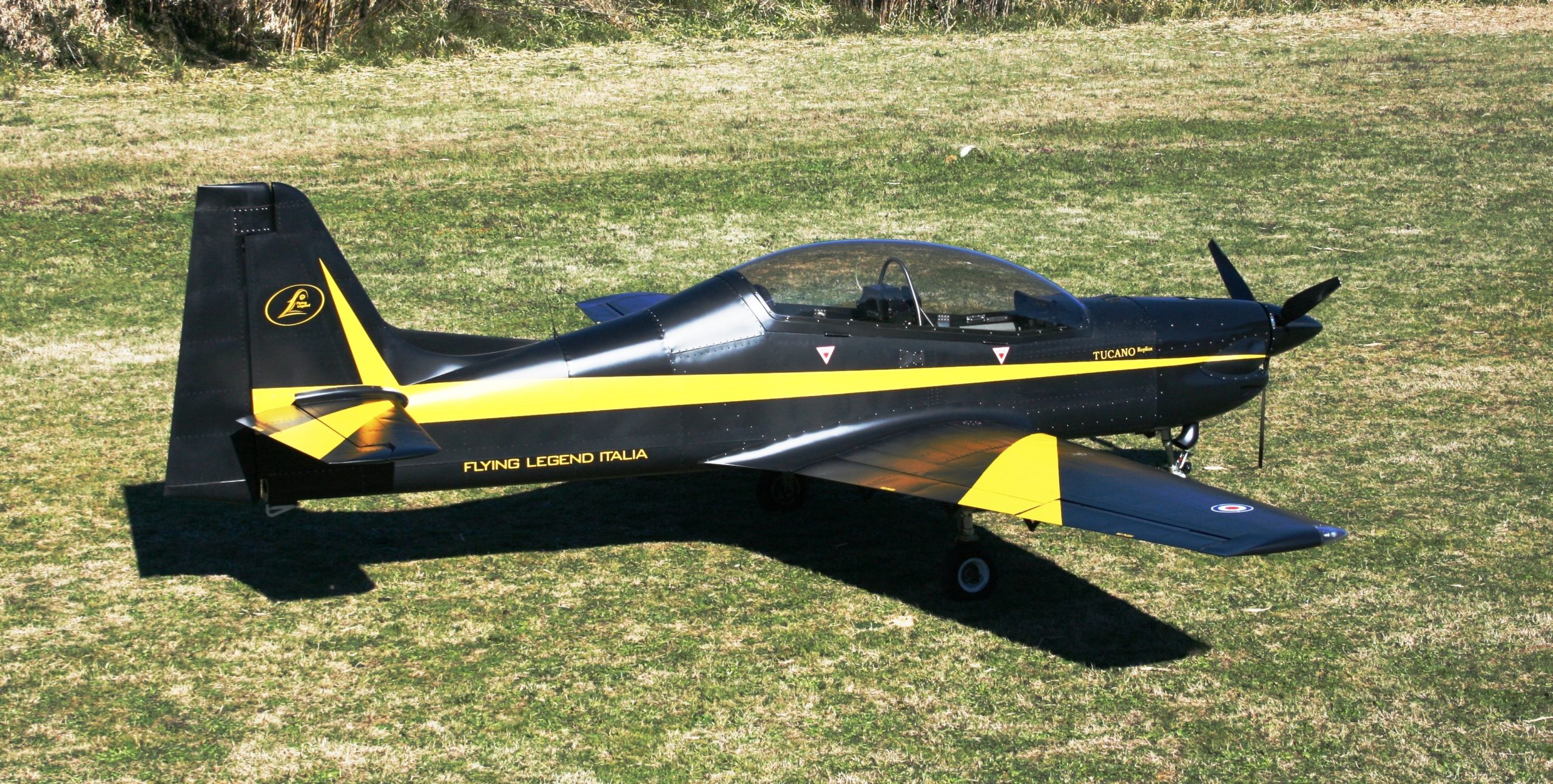

Tucano R – “Experimental”

Il Flying Legend Tucano R – “Experimental” replica del Tucano con carrello di atterraggio retrattile ed elica a passo variabile, è la scelta giusta per i piloti che sognano di pilotare un warbird ed avere le stesse sensazioni che provano i piloti militari

Grazie alla sua struttura robusta e al nuovo design delle ali, il volo è molto stabile ed allo stesso tempo divertente, poichè l’aereo permette di eseguire in sicurezza manovre acrobatiche di base.

Specifications

Aircraft Dimension

Aircraft length23,29 ft
Wing Span27.59 ft
Wing Area 111 Sq. ft
Cabin Height3,12 ft
Cabin Width2,36 ft
Max Seating capacity2
Fuel Tank capacity2×15,85 US gal
Extra fuel capacity13 gal

Design Weight & Loading

Maximum take off Weight Design 1433 lb with a load factor of +6/-3 Gs
Maximum take off Weight Design
Maximum take off Weight (ULM Version)
1653 lb with a load factor of +4 /-2 Gs
1041 lb with a load factor of +6/-3 Gs
Empty Weight
925 to 1050 lb
(ULM version 670 / 690 lb)
Baggage allowance with 1 pilot154 lb
Baggage allowance with 2 pilot75lb

Power Plant & Performance (1433 lb – 650kg)

Power UnitRate of ClimbMax Cruise Speed (85%)Stall
L.C.
Average ConsumptionRange
NM
VNE
kts
Rotax 912 (100 hp)1000 ft/min (MSL)120 kts (TAS )
(MSL)
40 kts4,7 US gal/hr690 178
Rotax 912 IS
(100 hp)
1000 ft/min
(up to 8000 ft)
130 kts (TAS)
(alt. 5000 ft)
40 kts4,5 US gal/hr790178
Rotax 914 (115hp)1200 ft/min
(MSL)
125 kts40 kts5,8 US gal/hr650178
(*) Rotax Supercharger
(140 hp)
1300 ft/min
(MSL)
130 kts (TAS )
(MSL)
45 kts7,1 US gal/hr630178
Rotax 915 Is 1300 ft/min
(up to 10000 ft)
150 kts (TAS)
(alt.6000 ft)
50
kts
6.9 US gal/hr630178

* Rotax 912 with mechanical compressor and a Three-blade v.p. propeller

CRUISE Performance 915 is -141 hp – (1653 lb – 750kg)

Altitude% Power climb
80 kts
KTAS Average Consumption
6000 ft 65%
85% Eco
85% Pow
1000 ft/min130
143
148
6.6 US gal/hr
9 US gal/hr
10.1 US gal/hr
9000 ft 65%
85% Eco
85% Pow
950 ft/min 140
145
150
6.9 US gal/hr
8.5 US gal/hr
10.3 US gal/hr
12000 ft 65%
85% Eco
85% Pow
900 ft/min142
149
160
6.9 US gal/hr
8.7 US gal/hr
10.9 US gal/hr
15000 ft 65%
85% Eco
85% Pow
850 ft/min 147
155
164
6.9 US gal/hr
8.7 US gal/hr
11 US gal/hr
Cruise Performance with MTOW 650 kg (1433 lbs) are 7 knots more for every range
